LV-110S 4" (100mm) Integrated Vane Probe Thermo-Anemometer

New LV-110S 4" (100mm) Diameter Vane Probe Thermo-Anemometer Displays Velocity and Temperature
    Price Starting At: $628.00

    Overview

    The LV-110S Vane Thermo-Anemometer is a portable, compact digital meter designed for simplicity and easy of use. The LV-110S Thermo-Anemometer features include a 4" (100mm) diameter vane probe, 12" (304mm) long sensor. Features include high stability, good repeatability and fast response in order to have HIGH accuracies of measurements in a wide variety of ambient conditions.
    Features
    • Measure Air Velocity and Temperature
    • Mearsure Air Velocity 59 to 6890 fpm (0.3 to 35 m/s)
    • 4" (100mm) Vane Probe, 12" Long Probe with Retractable 18" cable expands to 8'
    • Reliable Accurate and Easy to Use
    • Large backlight Display
    • Display of 2 Measurements Simultaneously
    • Hold, Min and Max Function
    • ABS IP54 Housing
      Shipping Estimated Shipping 6 to 8 weeks.

    LV-110S Vane Thermo-Anemometer Measuring Specifications
    Parameters Measuring Units Range Accuracy Resolution
    Air Velocity m/s, fps 59 to 6890 fpm (0.3 to 35 m/s) 59 to 590 fpm (0.3 to 3 m/s), ±3%rdg ± 0.1 m/s
    591 to 6890 fpm (3.1 to 35 m/s) ± 1%rdg ± 0.3 m/s
    0.01 m/s
    0.1 m/s
    Airflow Calculation with Optional Cones m3/h, cfm, I/s, m3/s 0 to 58857 cfm (0 to 99999 m3h) ± 3%rdg ±0.03 area (cm2) 1 m3/H
    Temperature °C/°F Switchable 0 to 176°F, (-18 to 80°C) ± (0.4%rdg + 0.3°F/0.15°C) 0.1
    LV-110S Vane Thermo-Anemometer General Specifications
    Measuring Elements Hall Effect Sensor
    Ambient Temperature Sensor NTC Sensor
    Vane Diameter 4" (100 mm)
    Probe Length 12" straight
    Cord Integral Retractable 18" expands to 8'
    Display 4 lines, LCD technology. Sizes 50 x 36 mm.:
    2 lines of 5 digits with 7 segments (value) and
    2 lines of 5 digits with 16 segments (unit)
    Housing ABS IP54 Rating
    Keypad 5 keys
    Working Environment Neutral Gas
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature 0 to 176°F (-18 to 80°C)
    Power Supply 4 AAA batteries LR03 1.5 V
    Conformity 2011/65/EU RoHS II, 2012/19/EU WEEE
    2014/30/EU EMC, 2014/35/EU Low Voltage
    Battery Life Approximately 58 hours
    Automatic Shut Off Programmable to 120 minutes
    Meter Dimensions 5.8" x 3" x 1.3"
    Weight 6.7 ounces
    Each LV110S Thermo-Anemometer includes, 12" long probe with 4" (100mm) Diameter Vane, Integral Retractable 18" cable, Adjustment Certificate, Soft Carrying Case, batteries and Quick Reference Manual.

    Related Products

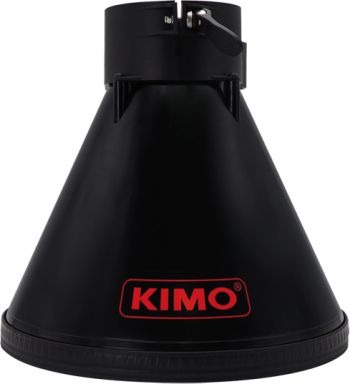

    K25 Air Flow Cone for VT and LV Series 4" Vane Probes
    K25 Air Flow Cone for VT and LV Series 4" Vane Probes

    K25 Air Flow Cone for VT and LV Series 4" Vane Probes is an essential instrument for measuring direct air flows in ventilators and HVAC systems.

    $181.00

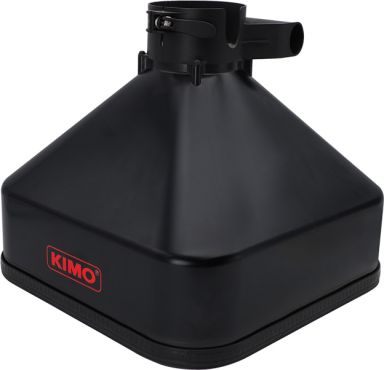

    K85 Air Flow Cone Measuring Direct Air Flows in Ventilators, HVAC Systems
