Si-AQ Expert Environmental Indoor Air Quality Meter, Customize UP to 7 Gases Capable of 11 Simultaneously Parameters

Si-AQ Expert Portable Environmental Indoor Air Quality Monitor

providing the latest in Monitoring and Data Logging for Indoor Air Quality testing in
Hospitals, Buildings, Schools, Labs, Clean Rooms, Airports and more.
Customize with UP to 7 Gases
Si-AQ Expert Base Unit Including, Temperature, Barometric Pressure, Relative Humidity, Dew Point, Wet Bulb, REAL-TIME Data Logging, PC Software (with USB Cable), Bluetooth Communications, Differential Pressure, Operating Manual, Swivel Handle for Easy Transport, Li-Ion Battery and AC Charger and Factory Calibration Certificate.
Si-AQ Expert Environmental Indoor Air Quality Meter Customize with UP to 7 Gases
    Price Starting At: $3,876.00

    Overview

    The advanced SI-AQ Expert portable meter can be Customize with UP to 7 Gases and is capable of 11 Simultaneously Parameters. The Si AQ-Expert includes as standard parameters % Relative Humidity, Wet Bulb & Dew Point, Temperature, Barometric Pressure Measurements. Choose up to seven Gas Sensors including Carbon Dioxide (CO2), Carbon Monoxide (CO), Volatile Organic Compounds (VOC), Oxygen (O2), NO2, Ozone, SO2, H2S.
    Features
    • Base Unit Includes - % RH, Wet Bulb & Dew Point, Temperature, Barometric Pressure Measurements
    • Customize with UP to 7 Gases - CO, CO2, VOC, O2, NO2, Ozone, SO2, H2S, CH2O
    • Active Internal Sampling Pump
    • Large Internal Memory for REAL-TIME Continuous Data Logging for Graphs, Data Review, IAQ reports
    • Wireless Communications with Bluetooth
    • PC Software and USB Cable Included
    • Dual Temperature Type K Thermocouple Inputs for ∆T
    • Light Weight, Durable, and Easy–to–Transport Design
    • Li-Ion Rechargeable Battery
    • Easy to Use Menu System with Built-in, Menu-driven Calibration Procedure
    • Portable with Swivel Handle
    • Optional Handheld Probe
    • Optional Wireless Remote Printer
    • Designed and Manufacturing in the USA
    Customize to YOUR Needs The base AQ-Expert comes standard with Temperature, Relative Humidity (RH), Wet Bulb & Dew Point and Barometric Pressure readings.
    The AQ-Expert may be configured with up to an additional seven sensors; CO Sensor, CO2 Sensor, VOC Sensor, NO2 Sensor, O3 Sensor, H2S Sensor, O2 Sensor, NO/NOx Sensor or SO2 Sensor. See Ordering Table for Details
      Shipping Click Add to Cart to Configure Sensor Options
    Estimated Shipping 12 to 16 Weeks Depending on Sensor Configuration

    Si-AQ Expert Standard Measurement Parameter Specification
    Parameter Sensor Range Resolution Accuracy
    % Relative Humidity Thin Film Capacitive 0 to 100% RH 0.1% RH ±2% RH
    Temperature Ambient Pt100 -40 - 257°F
    -40 - 125°C
    0.1°F/°C ± 2°F (32 to 140°F)
    ± 0.4°C [0 to 60°C
    Differential Pressure Bridge ±40.0 inH2O (±100 mbar) 0.1 inH2O (0.25 mbar) ±1% rdg.
    Barometric Pressure Solid State 260 to 1260 mbar 1 mbar ± 2 mbar
    Temperature T1 and T2 Thermocouple Type K 0 to 2000°F (0 to 1100°C) 1°F/1°C 5°F(3°C) or 2% of rdg
    Si-AQ Expert Optional Gas Measurement Parameter Specification
    Up to Six can be added to the AQ-Expert
    Parameter Sensor Range Resolution Accuracy
    Carbon Dioxide (CO2) NDIR 0 to 5,000ppm or
    0 to 20%
    1 ppm or
    0.1%
    ±2% rdg. or
    ±3% rdg
    Carbon Monoxide (CO) Electrochemical 0 to 200ppm .01 ppm ± ppm rdg. ±0.2 ppm
    Oxygen (O2) Electrochemical 0 to 25% 0.1% ±0.1% vol.
    Ozone (O3) Electrochemical 0 to 5ppm 1 ppb -
    Hydrogen Sulfide (H2S) Electrochemical 0 to 100ppm 1ppm ±4% of rdg. ±0.5% ppm
    Nitric Oxide (NO) Electrochemical 0 to 250ppm 0.1ppm ±2 ppm of rdg.
    Nitrogen Dioxide (NO2) Electrochemical 0 to 20ppm 0.1ppm ±0.5 ppm of rdg
    Sulfur Dioxide (SO2) Electrochemical 0 to 20ppm 0.1ppm ±0.5 ppm of rdg.
    Volatile Organic Compounds (VOC) PID 0 to 20ppm (0 - 46 mg/m ) or
    0 to 200ppm (0 - 460 mg/m 3)
    1ppb (2.3 µg/m3) or
    10ppb (23 µg/m3)
    ±10% rdg. ±20ppb or
    ±10% rdg. ±50ppb
    Air Velocity (with Optional Pitot Tube Calculated 0 to 300 ft/sec 1 ft/sec -
    Si-AQ EXPERT Base Unit Including: Temperature, Relative Humidity, Wet Bulb & Dew Point, Barometric Pressure measurements, Continuous Internal Sampling Pump, REAL-TIME data logging, PC Software (with USB Cable, Internal Bluetooth & External Dongle, Dual-channel TcK (Diff. Temp), Differential Pressure, Operating Manual, Swivel Handle for Easy Transport, Li-Ion Battery & AC Charger, Factory Calibration Certificate

    Related Products

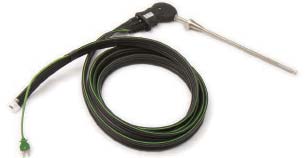

    AQ Pro Series and AQ Expert IAQ Meter 12 in. Probe 10' Dual Hose
